12mm Small Brushless DC Motor 6V 9V 12V BLDC Gear Motor 400mNm 8.1RPM to 8539RPM Customizable Micro DC Gear Motor
Product Tag: 12mm Brushless Gear Motor , 12mm BLDC Gear Motor , 12mm Brushless DC Gear Motor , 12mm DC Brushless Gear Motor , 12mm Brushless Gearmotor , 12mm Brushless DC Gearmotor , 12mm Geared BLDC Motor , 12mm OEM Geared BLDC Motor , 12mm Geared Brushless DC Motor , 12mm High Torque Gear Motor , 12mm Low Speed Gear Motor , 12mm Brushless DC Gearbox Motor , 12mm Small DC Brushless Gear Motor
- Introducing our slotless brushless motor, paired with a high-precision planetary gearbox. Panda's slotless BLDC motors excel at low speeds without cogging torque, featuring low inertia for quicker acceleration.
- When combined with high-precision gearboxes, they provide reliable solutions for high torque at low speeds. Known for high efficiency and excellent torque output, these motors accommodate varying loads with minimal backlash, ideal for intermittent duty.
- Our planetary gearboxes are available in sizes ranging from 8mm to 57mm in diameter.
Key Specifications for this 12mm Brushless DC Gear Motor:
- Gearbox Outer Diameter: 12 mm
- Rated Voltage: 6V DC to 12V DC or customized
- Gearbox Length: 14.3 mm to 25.5mm
- Reduction Ratio: Wide range from 1: 3.5 to 1: 2036.27
- Rated Torque: wide range from 4.1mNm to 400mNm or Customized
- Rated Speed: wide range from 8.1rpm to 8539rpm or Customized
Typical Applications:
- Power Hand Tools
- Bionics & Exoskeleton Systems
- Prosthetic Arms and Hands
- Dental Hand Tools
- Dosing and Dispensing Systems
- Electric Grippers for Robotics
Miscellaneous:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please
Check Here and download.

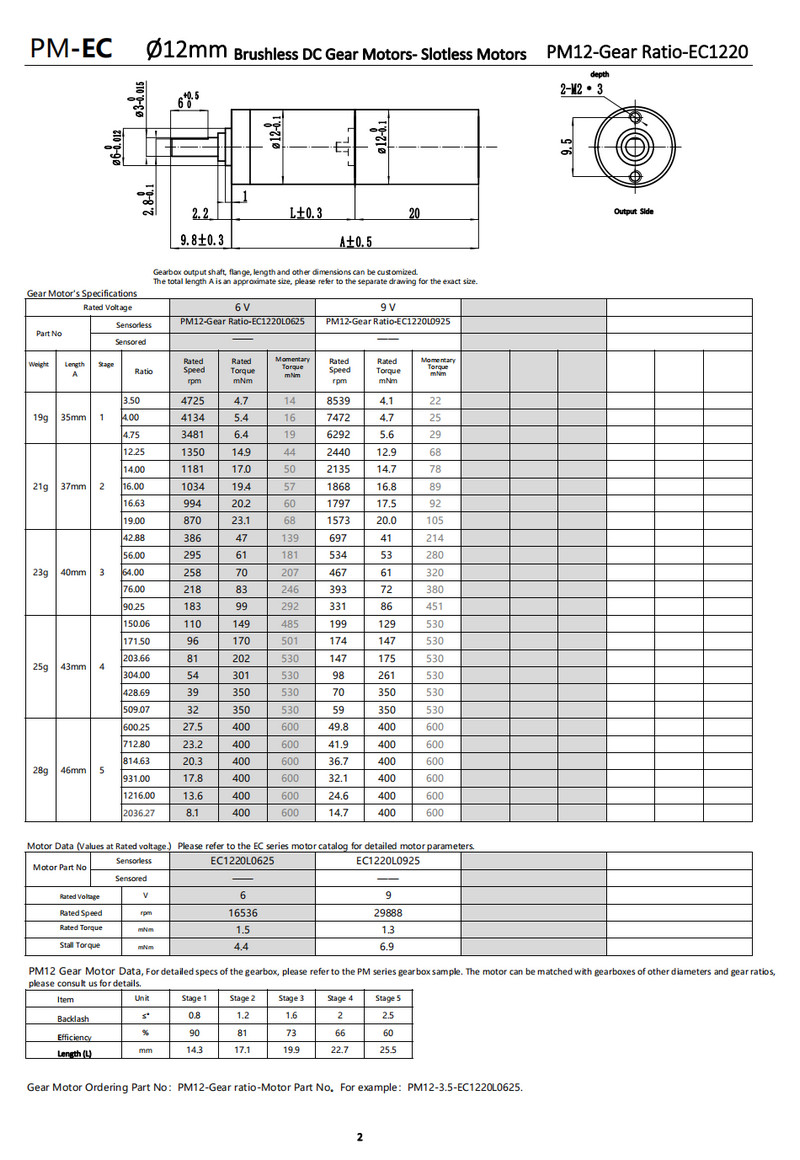

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
